Telecom / HC Series Air Conditioner / 2kW Air Conditioner with 100W/K Heat Exchanger

Two systems in one

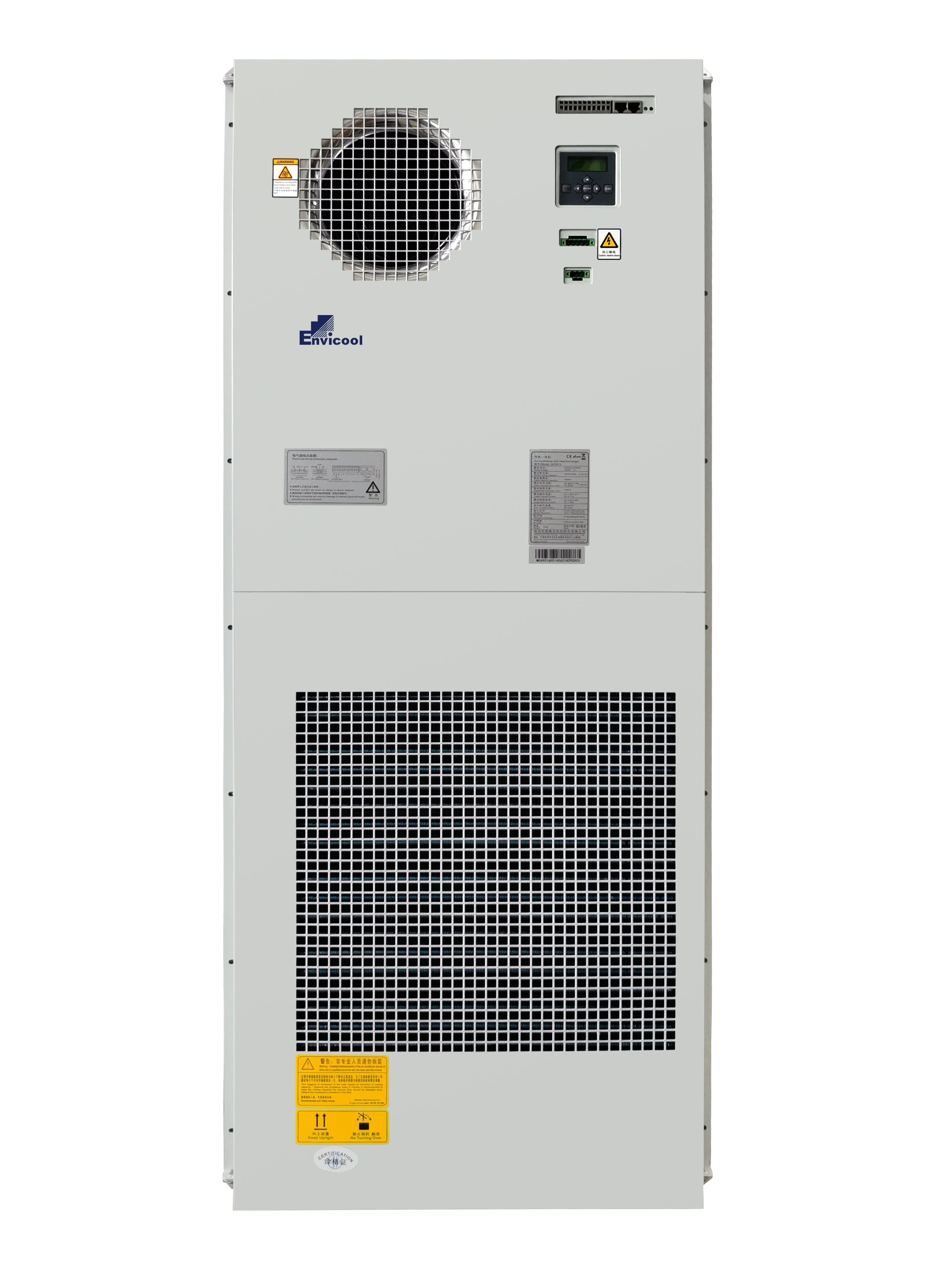

2kW Air Conditioner with 100W/K Heat Exchanger

Hybrid cooling is designed for outdoor climate control applications with integration of heat pipe HEX and air conditioner. The heat pipe HEX will mainly work if the ambient temperature is lower than the temperature inside the
cabinet, thus lowering the power consumption. It uses DC power supply to ensure continuous heat dissipation when the power is off.

2kW Air Conditioner with 100W/K Heat Exchanger

Features

High reliability, non-stop for 10 years

R134a refrigerant, compliance with RoHS

Energy saving

RS485 interface with MODBUS protocol

LCD Menu Display

IP55 protection level for outdoor application

applications

Outdoor Communication Cabinet

Telecom Site

/ 12

2kW Air Conditioner with 100W/K Heat Exchanger

Cooling capacity2kW
Heat exchange capacity100W/K
Power supply220VAC,50/60Hz & -48VDC
Working ambient temperature range-40°C~+55°C
IP protection levelIP55
Mounting methodDoor mounted
